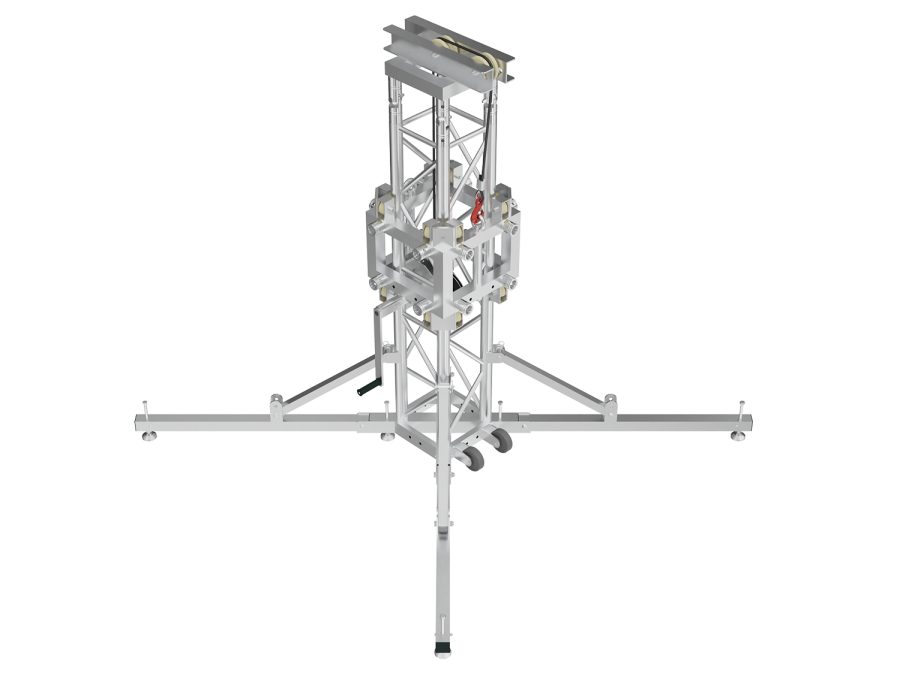

Tower 05 is a light-duty tower system that consists of straight HT34 truss segments. The Tower 05 base is an all-in-one unit, which includes an aluminum base plate with outriggers, straight HT34 truss with sleeve block and top section. This unit comes with wheels for easy handling. Once the tower is in place, it is easily unfolded and the straight HT34 truss is set on top. It also comes with a steel rope hand winch. No need for additional accessories! Tower 05 ground support is the right choice for small roof systems and elevating truss grids, and more.

Key features and benefits:

• Tower 05 lifting height: 6.5 m (21.3 ft)
• Max. loading capacity: 500 kg (1,100 lbs)
• Part List: HT34 truss, Tower Set 05 = alu base, outriggers, hinges, sleeve block, top section, hand winch with steel rope
• Welded sleeve block ready for FT/HT/TT34 truss series attachment
• Four way connection through the sleeve block possible
• Interior & exterior applications
• Connection kit supplied with straights and sleeve block
• Compatible with clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
• Quicklock connection by connectors, pins and safety clips included

New and improved features:

• Steel, side-to-side rotating feet for improved leveling on a wide range of surfaces
• Adjustable leg braces for increased stability
• Modified sleeve block allows for smoother travel
• Eight holes (two on each side of sleeve block) allow for convenient mounting of accessories
• Chain hoist connection point on top section
