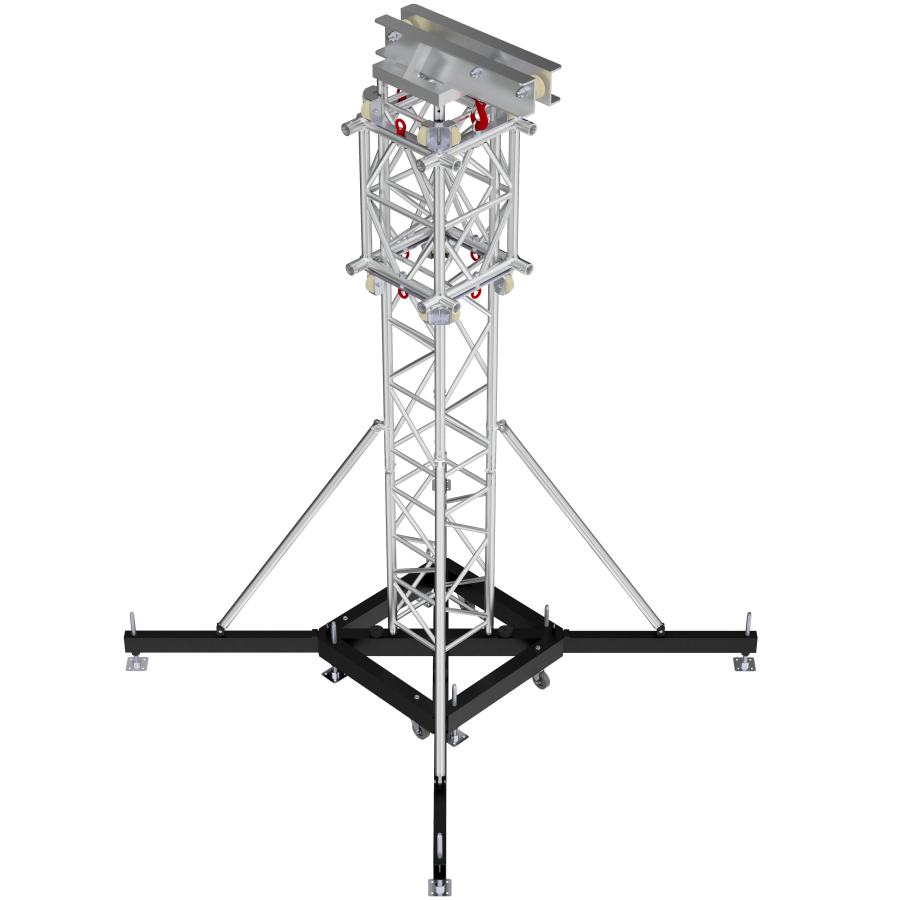

Tower 2 is ground support designed for lifting large scale structures, such as touring roof systems and big show grids. The system consists of straight TT44 truss segments, a steel base plate, long outriggers for supporting the vertical stability of the tower, an aluminium welded sleeve block for truss attachment and an aluminium top section with pulleys.

It can be installed as both an independent unit or as a supportive column in large scale structures, such as roofs, grids, LED screen frames, etc. Tower 2 is designed for use with a manual chain hoist or rigging motor with chain. The top section is ready to accommodate steel rope, as well as a steel chain.

Key features and benefits:

• Tower 2 max. lifting height: 12 m (39.4 ft)
• Max. loading capacity: 2000 kg (4,409 lbs)
• Part List: TT44 truss, steel base plate, long outriggers, hinges, sleeve block, top section
• Several welded sleeve block versions ready for attachement of FT/HT/TT44/TT54/TT74 truss series --- different variations available on request
• Four-way connection through the sleeve block possible
• Interior & exterior applications
• Connection kit supplied with straights and sleeve block
• Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
• Quicklock connection system with pins and safety clips as standard
