Products / Towers / PA TOWER 1

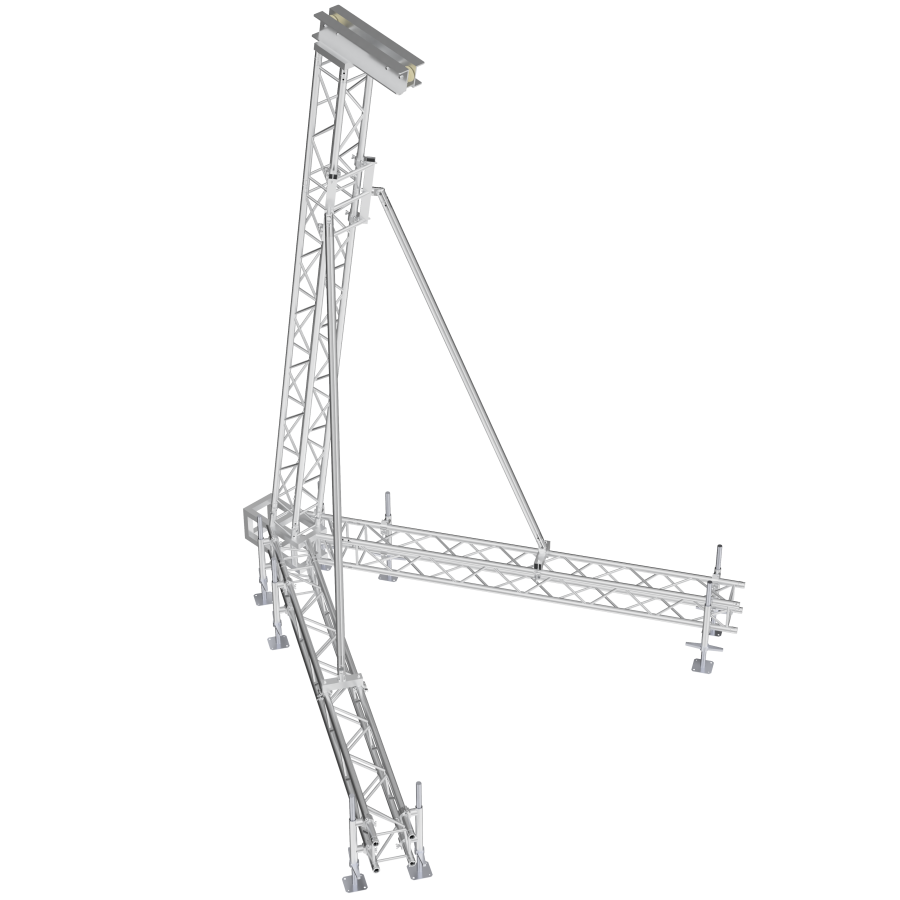

PA TOWER 1

The PA tower structure comes with all components for quick and easy installation. It's a medium-duty sound equipment rigging tower system made from aluminum truss. The tower consists of TT34 truss segments, as well as a 60° tower base corner, stabilizer tubes for vertical support, hinges, top section, connection stab, screw jacks and their attachments to the truss. Line array tower installations have become one of the most important elements for sound engineering at live events. They are suitable for both indoor or outdoor use, as they can be placed independent from the main stage, and help create the perfect sound experience for audiences at all types of events.



Key features and benefits:



  • PA Tower 1 max. lifting height: 6.6 m (21.65 ft)
  • Max. loading capacity: 800 kg (1,764 lbs)
  • Part List: TT34 truss, base corner, stabilizers, hinges, top section, connection stab, screw jacks with attachments
  • Interior & exterior applications
  • Connection kit supplied with all truss segments
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Quicklock connection system with pins and safety clips as standard
Specifications

SELF WEIGHT

236 kg (520.3 lbs)

HEIGHT

6.82 m (22.38 ft)

MAX. LIFTING HEIGHT

6.60 m (21.65 ft)

LOAD CAPACITY

800 kg (1,764 lbs)
FT Truss CEPowder coating available
