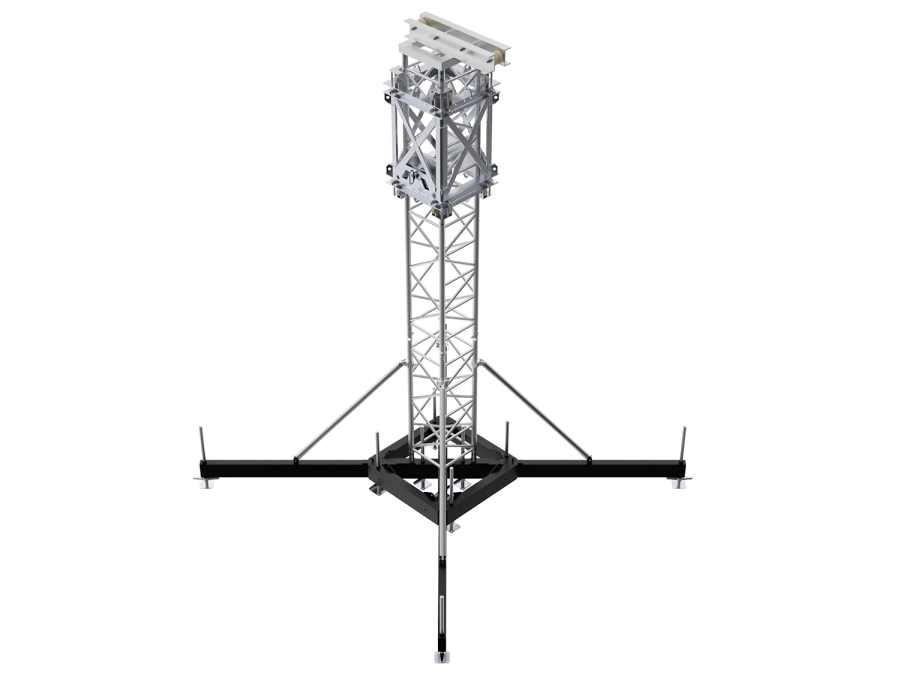

TAF Tower 3 is the tallest and most durable tower system in our range, designed for maximum stability and load capacity. Its structure allows for a height of up to 20 meters (65,62 ft) while supporting a maximum load of 5000 kg (11,023.12 lbs). The main tubes od the tower truss, measuring 60 × 5 mm (2.36 x 0.18 in), and braces, 30 × 3 mm (1.18 x 0.12 in), are made from high-quality EN AW-6082 T6 alloy, ensuring long-lasting durability and strength. This system is ideal for demanding structural projects where maximum reliability is required.

Key features and benefits:

• Lifting height: 20 m (65.62 ft)
• Max. loading capacity: 5000 kg (11,023 lbs)
• Material: High-strength aluminum alloy EN AW-6082 T6
• Welded sleeve block for secure truss attachment
• Four-way connection through the sleeve block for versatile configurations
• Suitable for both indoor & outdoor applications
• Connection kit included with straights and sleeve block
• Compatible with various clamps for easy integration
• Quicklock connection system with connectors, pins, and safety clips included
