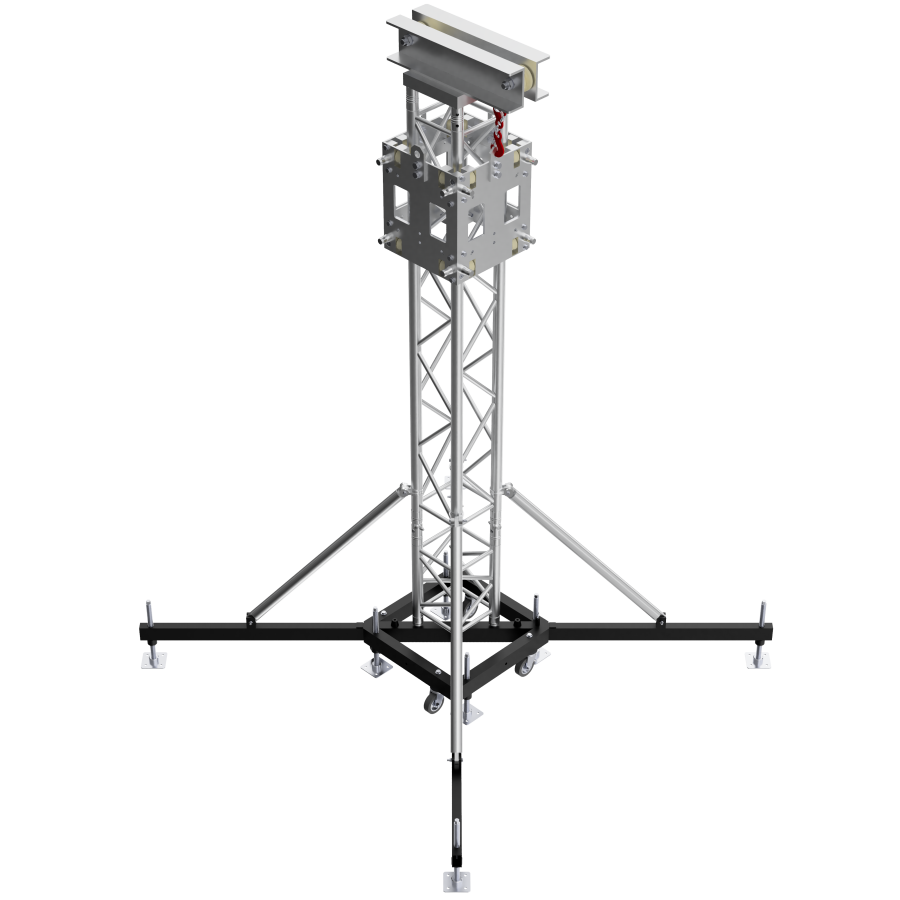

The Tower 1 system features an intricately designed ground support that fully accommodates lifting of truss structures and other equipment. The system consists of straight TT34 truss segments, steel base plate, long outriggers that support the vertical stability of the tower, steel-plated sleeve block for truss attachment and aluminum top section with pulleys. It can be installed as an independent unit for  lifting equipment, such as speakers, lights, screens, etc. Often used in large truss grid frames, roof systems or LED screen frames. Tower 1 is designed to accept a steel rope hand winch, manual chain hoist or rigging motor with chain, with the top section ready for any of these three options.

Key features and benefits:

• Tower 1 lifting height: 7.5 m (25 ft)
• Max. loading capacity: 1000 kg (2,200 lbs)
• Part List: TT34 truss, steel base plate, long outriggers, hinges, sleeve block, top section
• Prefabricated sleeve block ready for attachment of FT/HT/TT34, FT/HT/TT44, FT/HT33 and FT/HT43 truss series
• Four-way connection through the sleeve block possible
• Interior & exterior applications
• Connection kit supplied with straights and sleeve block
• Compatible with  8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
• Quicklock connection system with pins and safety clips as standard
