ROOF GAZEBO RSG 4x4m

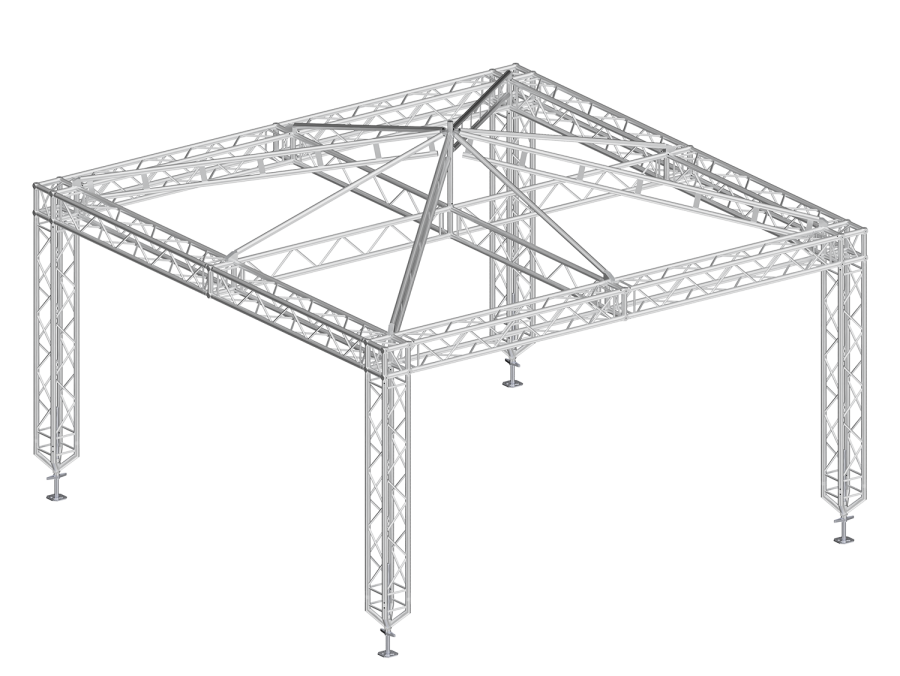

Gazebo design of aluminum truss roof structure opens up many possibilities. It can stand in parks, gardens, squares, etc., for all kinds of purposes. The gazebo structure can be used as a simple lightweight bandstand or a stand for wedding ceremonies or just a temporary place to chill out at a festival. It is approved with the application of PVC canopy on top, which means that all four sides of it stay open for clear view. The gazebo covers stage of max. 4 x 4 m (13.12 x 13.12 ft) and is mostly assembled from standard FT34 and FT32 trusses.
The top canopy support system is created by FT32 trusses, five 50 x 4 mm (1.97 x 0.16 in) single tubes hooks for attachment, specifically designed ladder trusse and a FT32-31AD adapter. The total height of the structure is 3.75 m (12.30 ft) while the maximum clearance can go up to 3 m (9.84 ft).
The main grid horizontal beams can carry 10 kg/m (6.72 lbs/ft) of uniformly distributed load. The total max. loading capacity of the roof is then 200 kg (440 lbs). The operational wind limit for using the roof system is 15 m/s (33 mph).
|
MAX. DIMENSION |
5 x 5 m (16.40 x 16.40 ft) |
|
MAX. STAGE SIZE |
4 x 4 m (13.12 x 13.12 ft) |
|
MAX. CLEARANCE |
3 m (9.84 ft) |
|
MAX. HEIGHT |
3.75 m (12.30 ft) |
|
MAX. LOAD BEARING CAPACITY |
200 kg (440 lbs) |
|
TOTAL WEIGHT OF CONSTRUCTION |
301 kg (664 lbs) |
Contact us today for more information or to receive a price quote.
