Products / LED Frames / LED FRAME 3

LED FRAME 3

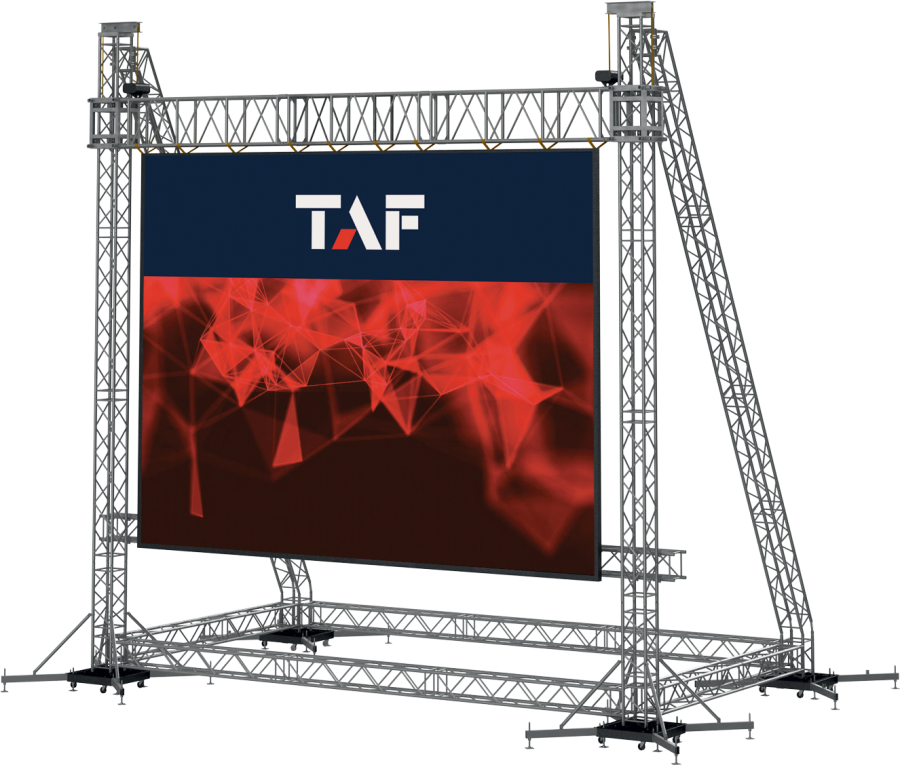

LED frame is an easy and fast assembly system that can equip LED screen of 8x6m (26,2x19,7 ft) with maximum weight of 3000 kg (6615lbs). The LED frame is build up from FT44 and TT74 trussing segments and the max.lifting hewight is ca. 8,6m (28ft).

Specifications

MAX. DIMENSION

12,3 x 8,2 m (40,4 x 26,9 ft)

MAX. LED SIZE

8x6 m (26,2 x 19,7 ft)

MAX. HEIGHT

10,2 m (33,5 ft)

MAX. LOAD CAPACITY

3000 kg (6615 lb)

TOTAL WEIGHT OF CONSTRUCTION

1200 kg (2645 lb)
CE
TAF Truss Aluminium | LED FRAME 3 | LED Frames
