GS910

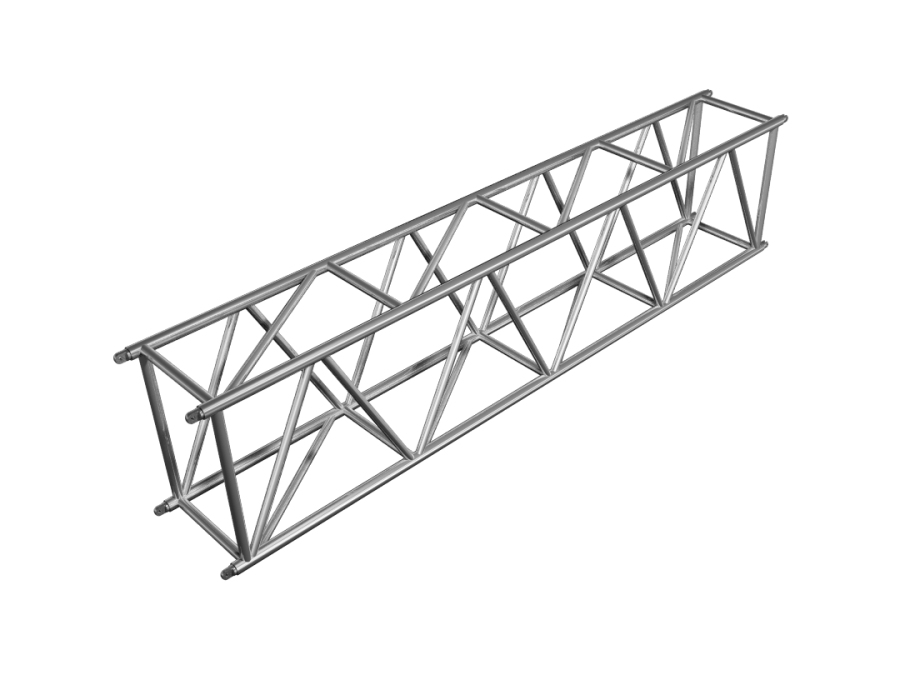

Large, heavy-duty rectangular fork (super beam) truss. Its overall dimensions are 609 x 914 mm (24 in x 36 in). Super beam truss is recommended for structures where high strength and stability are required, such as structures with high loading capacity and longer spans. Fork connectors, which are compatible with other brands, are located on both ends.

Key features and benefits:



  • Heavy-duty 609 x 914 mm (24 in x 36 in) rectangular fork truss (super beam)
  • Available in lengths up to 3 m / 9.84 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8038, 8039, 8042 clamps
  • Imperial lengths available on request
  • Fork connection - male & female fork connectors, steel pins and safety clips
  • Powder coat finish in any color available on request
Specifications

TUBES

60 x 5 mm (2.4 in x 0.2 in)

BRACES

40 x 3 mm (1.6 in x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss TAF Static Approved CEPowder coating available
