Products / Fork Truss / GS620

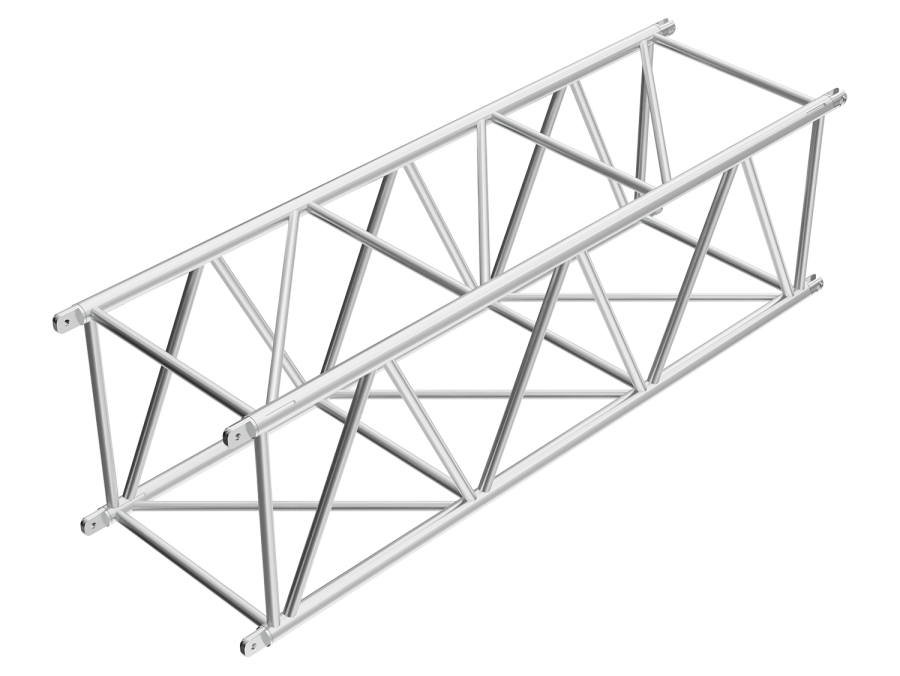

GS620

GS medium duty truss with fork connectors on all ends is widely used for flying equipment in a larger grids and in touring industry. Its great loading characteristics  of maxi beam make it a suitable truss for large scale installations. In general it is a very popular truss type that is with its relatively neat dimensions 617 x 617 mm (24.29 x 24.29 in) and high loading charts used by many truss professionals and installers.



Key features and benefits:



  • 617 x 617 mm (24.29 x 24.29 in) medium-duty square fork truss
  • Available in lengths up to 3.048 m / 10 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Metric lengths available on request
  • Snap Clamps compatible (8102-8105)
  • Fork connection - male & female fork connectors, steel pins and safety clips
  • Powder coat color finish available on request
Specifications

TUBES

48 x 4.5 mm (1.89 x 0.18 in)

BRACES

30 x 3 mm (1.2 x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
