Products / Fork Truss / GS500N

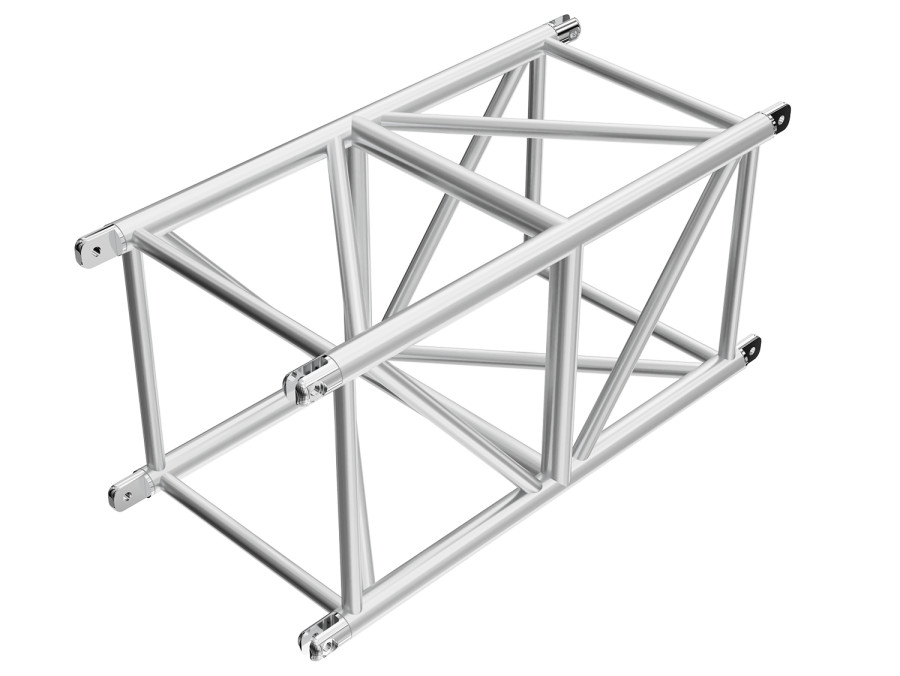

GS500N

The GS500N Fork Truss is a high-strength aluminum truss designed primarily for tower systems. Engineered for exceptional stability and durability, it features a fork connection system that ensures secure assembly. The GS500N combines efficiency with outstanding load-bearing capacity, making it an ideal choice for demanding applications in stage production, event structures, and outdoor installations.



Key features and benefits:



  • 500 x 500 mm (19.69 x 19.69 in) medium-duty square fork truss
  • Available in lengths up to 3 m / 9.84 ft
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap Clamps compatible (8102-8105)
  • Fork connection - male & female fork connectors, steel pins and safety clips
  • Powder coat color finish available on request
Specifications

TUBES

48 x 4.5 mm (1.89 x 0.18 in)

BRACES

30 x 3 mm (1.18 x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss TAF Static Approved

Contact us today for more information or to receive a price quote.
