Products / Fork Truss / GS350

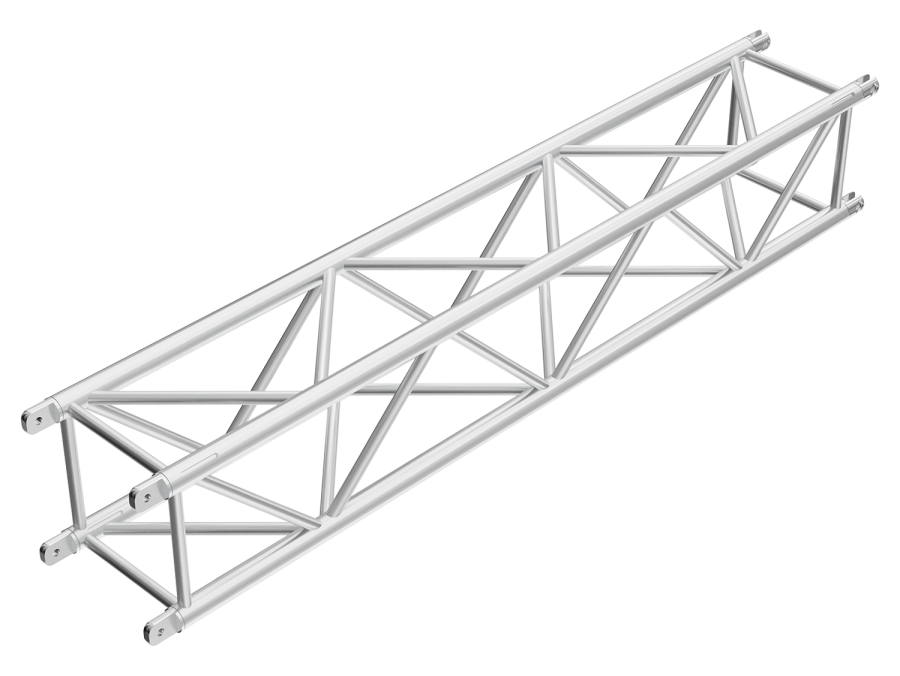

GS350

GS fork truss is widely used for flying equipment in larger grids and in the touring industry. Its impressive vertical loading characteristics make it a preferred choice for tower build-ups. Its relatively compact dimensions of 347 x 347 mm (14 in x 14 in) and high loading make it a popular choice with many truss professionals and installers.



Key features and benefits:



  • GS 347 x 347 mm (14 in x 14 in) light-duty square fork truss
  • Available in lengths up to 4.267 m / 14 ft (metric lengths available on request)
  • Interior & exterior applications
  • Connection kit supplied with straights and corners
  • Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
  • Snap Clamps compatible (8102-8105)
  • Fork connection - male & female fork connectors, steel pins and safety clips
  • Powder coat color finish available on request
Specifications

TUBES

48 x 4.5 mm (1.89 in x 0.8 in)

BRACES

25 x 3 mm (1 in x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss TAF Static Approved CEPowder coating available

Contact us today for more information or to receive a price quote.
